- 產品型號：42375850
- 頻率：32.768KHZ
- 尺寸：2.0*1.2mm
- 產品介紹：精微之處見真章論SC20S晶振的技術價值與時代意義在智能設備席卷生活的當下,無數精密元器件如同隱形的基石,支撐著數字時代的運轉.日本精工SC20S晶振以2012封裝尺寸...
-

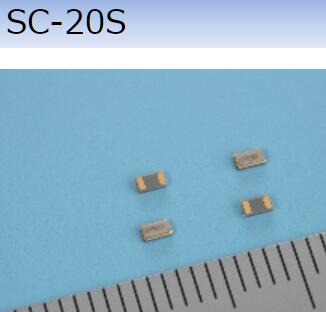

Q-SC20S0322070AAAF表晶晶振,日本精工SEIKO晶振
.jpg)
.jpg)
精微之處見真章論SC20S晶振的技術價值與時代意義在智能設備席卷生活的當下,無數精密元器件如同隱形的基石,Q-SC20S0322070AAAF精工晶振支撐著數字時代的運轉.日本精工SC20S晶振以2012封裝尺寸、32.768K頻率的精準參數,0.6mm超薄厚度的精巧設計,成為方寸電子空間中的“時間標尺”,其背后蘊藏的技術匠心與創新精神,正是科技進步的核心密碼.
極致工藝是SC20S晶振立足的根本.Q-SC20S0322070AAAF作為電子設備的“心臟節拍器”,它不僅以20PPM的高精度確保時間信號穩定,更憑借光刻技術打造的核心部件,實現了出色的抗沖擊與耐熱性,能在-40℃至85℃的極端環境中穩定工作.0.6mm的超薄設計適配高密度表面貼裝需求,完全無鉛的材質則契合RoHS環保指令,32.768K晶振將精準、耐用、環保等優勢集于一身.這種對細節的極致追求,恰是精密制造的靈魂——正如光刻技術在微觀世界勾勒精準紋路,每一個參數的嚴苛把控,都為智能設備的可靠運行筑牢根基.
廣泛應用彰顯其時代價值.從貼身的手機、可穿戴設備,到各類模塊與微型計算機的子鐘功能,SC20S晶振以微小身軀承載起關鍵使命.在追求輕薄化、智能化的消費電子領域,它的超薄設計為設備小型化突破提供可能；Q-SC20S0322070AAAF貼片晶振在復雜工況下,其穩定性能保障數據傳輸與運算的精準同步.正如高端傳感器是連接物理與數字世界的橋梁,晶振作為“電路心臟”,雖不為人所見,卻貫穿智能生活的方方面面,成為科技賦能生活的重要紐帶.
SC20S晶振的成功,印證了“偉大源于精微”的真理.在科技競爭日趨激烈的今天,正是這種對微觀領域的深耕細作,推動著技術迭代與產業升級.Q-SC20S0322070AAAF無源晶振它啟示我們,無論是科技研發還是日常學習,唯有秉持精益求精的態度,于細微處打磨,方能成就卓越.精微之處的堅守與突破,終將匯聚成推動時代前行的磅礴力量.
手機模塊晶振,可穿戴設備晶振,32.768K時間晶振
.jpg)

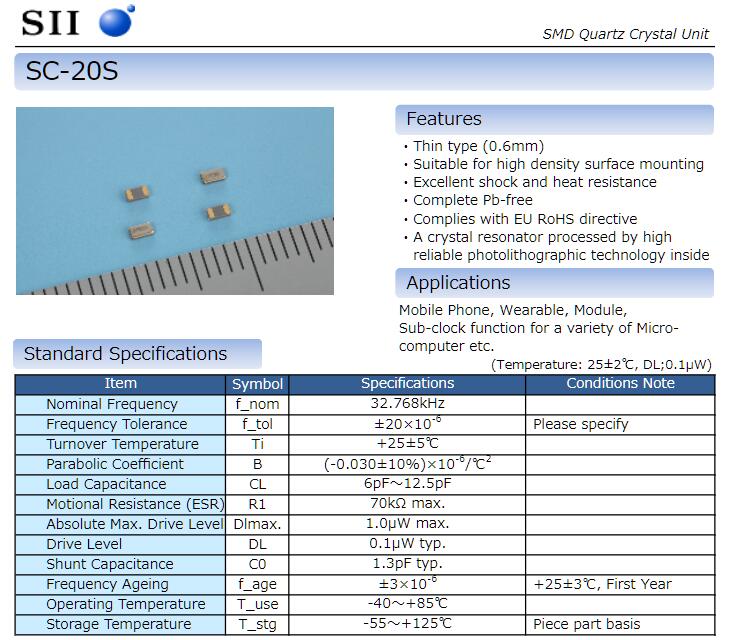

| 編碼 | Q-SC20S0322070AAAF |
| 品牌 | 日本精工SEIKO晶振SMD晶振 |
| 型號 | SC20S |
| 頻率 | 32.768KHZ |
| 精度 | ±20ppm |
| 負載 | 7PF |
| 產地 | 日本 |
| 工作溫度 | -40°C ~ 85°C |
| 尺寸 | 2.0*1.2mm |
手機模塊晶振,可穿戴設備晶振,32.768K時間晶振
.jpg)
| 晶振編碼料號 | Manufacturer廠家 | Series型號 | 頻率 | Frequency Stability頻率穩定度 | Load Capacitance負載電容 | Operating Temperature 工作溫度 | Size / Dimension 尺寸 |
| Q-SPT7P032762070FF | Seiko Instruments | SSP-T7-F | 32.768kHz | ±20ppm | 7pF | -40°C ~ 85°C | 0.264" L x 0.059" W (6.70mm x 1.50mm) |
| Q-SPT7P032761070FF | Seiko Instruments | SSP-T7-F | 32.768kHz | ±10ppm | 7pF | -40°C ~ 85°C | 0.264" L x 0.059" W (6.70mm x 1.50mm) |
| Q-SPT7P032760570FF | Seiko Instruments | SSP-T7-F | 32.768kHz | ±5ppm | 7pF | -40°C ~ 85°C | 0.264" L x 0.059" W (6.70mm x 1.50mm) |
| Q-SC32S03220C5AAE | Seiko Instruments | SC-32S | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q-SC32S03210C5AFE | Seiko Instruments | SC-32S | 32.768kHz | ±10ppm | 12.5pF | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q-SC32S03205C5ADE | Seiko Instruments | SC-32S | 32.768kHz | ±5ppm | 12.5pF | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q-SC32S0320570CADF | Seiko Instruments | SC-32S | 32.768kHz | ±5ppm | 7pF | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q-SC32S0321070CAAF | Seiko Instruments | SC-32S | 32.768kHz | ±10ppm | 7pF | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q-SC32S0322070AAAF | Seiko Instruments | SC-32S | 32.768kHz | ±20ppm | 7pF | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q-SC32S03220C5AAAF | Seiko Instruments | SC-32S | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q-SC32S03210C5AAFF | Seiko Instruments | SC-32S | 32.768kHz | ±10ppm | 12.5pF | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q-SC32S03205C5AADF | Seiko Instruments | SC-32S | 32.768kHz | ±5ppm | 12.5pF | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q-SC20S0322070CAAF | Seiko Instruments | SC-20S | 32.768kHz | ±20ppm | 7pF | -40°C ~ 85°C | 0.081" L x 0.047" W (2.05mm x 1.20mm) |
| Q-SC20S0321070CAFF | Seiko Instruments | SC-20S | 32.768kHz | ±10ppm | 7pF | -40°C ~ 85°C | 0.081" L x 0.047" W (2.05mm x 1.20mm) |
| Q-SC20S0320570CADF | Seiko Instruments | SC-20S | 32.768kHz | ±5ppm | 7pF | -40°C ~ 85°C | 0.081" L x 0.047" W (2.05mm x 1.20mm) |
| VT200F-6PF20PPM | Seiko Instruments | VT-200-F | 32.768kHz | - | 6pF | -10°C ~ 60°C | 0.074" Dia x 0.236" L (1.88mm x 6.00mm) |
| VT200F-12.5PF20PPM | Seiko Instruments | VT-200-F | 32.768kHz | - | 12.5pF | -10°C ~ 60°C | 0.074" Dia x 0.236" L (1.88mm x 6.00mm) |
| Q-SPT7P0327620C5GF | Seiko Instruments | SSP-T7-F | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C | 0.264" L x 0.059" W (6.70mm x 1.50mm) |
| Q-SPT7P0327610C5GF | Seiko Instruments | SSP-T7-F | 32.768kHz | ±10ppm | 12.5pF | -40°C ~ 85°C | 0.264" L x 0.059" W (6.70mm x 1.50mm) |
| Q-SPT7P0327605C5GF | Seiko Instruments | SSP-T7-F | 32.768kHz | ±5ppm | 12.5pF | -40°C ~ 85°C | 0.264" L x 0.059" W (6.70mm x 1.50mm) |
| Q-SC16S03220C5AAAF | Seiko Instruments | SC-16S | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C | 0.063" L x 0.039" W (1.6mm x 1.00mm) |
| Q-SC16S03210C5AAAF | Seiko Instruments | SC-16S | 32.768kHz | ±10ppm | 12.5pF | -40°C ~ 85°C | 0.063" L x 0.039" W (1.6mm x 1.00mm) |
| Q-SC16S03205C5AAAF | Seiko Instruments | SC-16S | 32.768kHz | ±5ppm | 12.5pF | -40°C ~ 85°C | 0.063" L x 0.039" W (1.6mm x 1.00mm) |
| Q-SC16S0322070CAAF | Seiko Instruments | SC-16S | 32.768kHz | ±20ppm | 7pF | -40°C ~ 85°C | 0.063" L x 0.039" W (1.6mm x 1.00mm) |
| Q-SC16S0321070CAFF | Seiko Instruments | SC-16S | 32.768kHz | ±10ppm | 7pF | -40°C ~ 85°C | 0.063" L x 0.039" W (1.6mm x 1.00mm) |
| Q-SC16S0320570CADF | Seiko Instruments | SC-16S | 32.768kHz | ±5ppm | 7pF | -40°C ~ 85°C | 0.063" L x 0.039" W (1.6mm x 1.00mm) |
| Q-SC20S03220C5AAAF | Seiko Instruments | SC-20S | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C | 0.081" L x 0.047" W (2.05mm x 1.20mm) |
| Q-SC20S03210C5AAAF | Seiko Instruments | SC-20S | 32.768kHz | ±10ppm | 12.5pF | -40°C ~ 85°C | 0.081" L x 0.047" W (2.05mm x 1.20mm) |
| Q-SC20S03205C5AAAF | Seiko Instruments | SC-20S | 32.768kHz | ±5ppm | 12.5pF | -40°C ~ 85°C | 0.081" L x 0.047" W (2.05mm x 1.20mm) |
| Q-SC20S0322070CAAF | Seiko Instruments | SC-20S | 32.768kHz | ±20ppm | 7pF | -40°C ~ 85°C | 0.081" L x 0.047" W (2.05mm x 1.20mm) |
| Q-SC20S0321070CAFF | Seiko Instruments | SC-20S | 32.768kHz | ±10ppm | 7pF | -40°C ~ 85°C | 0.081" L x 0.047" W (2.05mm x 1.20mm) |
| Q-SC20S0320570CADF | Seiko Instruments | SC-20S | 32.768kHz | ±5ppm | 7pF | -40°C ~ 85°C | 0.081" L x 0.047" W (2.05mm x 1.20mm) |
| Q-SPT2S0327620C5DJ | Seiko Instruments | SP-T2A-F | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
