高精密穿戴設備專用的SMD晶振X1E000021012116，愛普生公司作為日本優秀的元器件制造商，一直以來持續不斷打造自身的優質晶振產品，同時以具有核心競爭力的供應商為目標,廣泛向全球世界各地提供優質的晶振產品,包含石英晶振，石英晶體振蕩器，無源晶振等元器件，所生產的產品經過嚴格的生產體系制作而成.

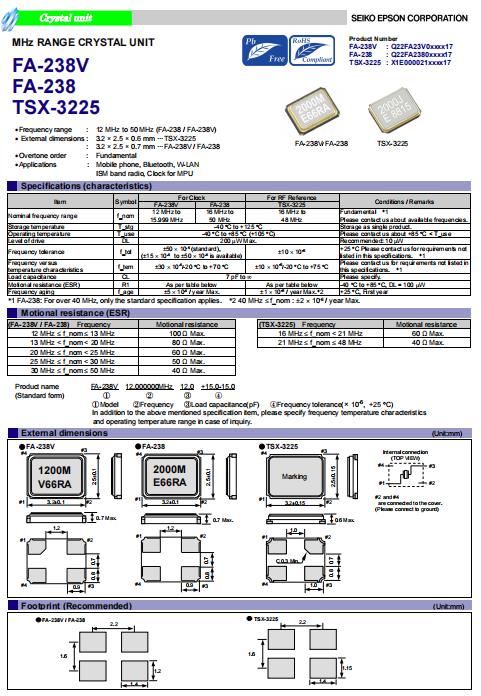

愛普生的這款TSX-3225晶振，SMD晶振，無源晶振編碼X1E000021012116，頻率24.000000兆赫，尺寸(LxWxH)3.2 x 2.5 x 0.6mm，客戶負載電容8pf，頻率公差+ / -10ppm，F(xiàn)o / temp。特征公差+ / -10ppm，溫度范圍-20至+75°C，具有非常高的穩定性,非常適用于對設計面積敏感的智能穿戴，醫療設備設計,TSX-3225晶振其小體積,高精度,低功耗的特性以及優良的耐熱性與耐環境特性,成為智能穿戴設備醫療設備的最佳之選.

產品編碼	無源晶振	型號	頻率	負載	Freq.tol. @+25°C	Freq.tol./Temp.range	Temperature range	ESR [Max]
X1E000021001916	3.2 x 2.5 x 0.6mm	TSX-3225	16.000000 MHz	9 pF	+/-10 ppm	+/-9 ppm	-20 to +75 °C	≤ 60 Ω
X1E000021004716	3.2 x 2.5 x 0.6mm	TSX-3225	20.000000 MHz	9 pF	+/-10 ppm	+/-20 ppm	-40 to +105 °C	≤ 60 Ω
X1E000021004816	3.2 x 2.5 x 0.6mm	TSX-3225	24.000000 MHz	9 pF	+/-10 ppm	+/-20 ppm	-40 to +105 °C	≤ 40 Ω
X1E000021011116	3.2 x 2.5 x 0.6mm	TSX-3225	16.000000 MHz	8 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C	≤ 60 Ω
X1E000021011216	3.2 x 2.5 x 0.6mm	TSX-3225	16.000000 MHz	9 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C	≤ 60 Ω
X1E000021011316	3.2 x 2.5 x 0.6mm	TSX-3225	16.000000 MHz	10 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C	≤ 60 Ω
X1E000021011416	3.2 x 2.5 x 0.6mm	TSX-3225	16.000000 MHz	12 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C	≤ 60 Ω
X1E000021011516	3.2 x 2.5 x 0.6mm	TSX-3225	16.000000 MHz	16 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C	≤ 60 Ω
X1E000021011616	3.2 x 2.5 x 0.6mm	TSX-3225	16.000000 MHz	8 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C	≤ 60 Ω
X1E000021011716	3.2 x 2.5 x 0.6mm	TSX-3225	16.000000 MHz	9 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C	≤ 60 Ω
X1E000021011816	3.2 x 2.5 x 0.6mm	TSX-3225	16.000000 MHz	10 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C	≤ 60 Ω
X1E000021011916	3.2 x 2.5 x 0.6mm	TSX-3225	16.000000 MHz	12 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C	≤ 60 Ω
X1E000021012016	3.2 x 2.5 x 0.6mm	TSX-3225	16.000000 MHz	16 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C	≤ 60 Ω
X1E000021012116	3.2 x 2.5 x 0.6mm	TSX-3225	24.000000 MHz	8 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C	≤ 40 Ω
X1E000021012216	3.2 x 2.5 x 0.6mm	TSX-3225	24.000000 MHz	9 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C	≤ 40 Ω
X1E000021012316	3.2 x 2.5 x 0.6mm	TSX-3225	24.000000 MHz	10 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C	≤ 40 Ω
X1E000021012416	3.2 x 2.5 x 0.6mm	TSX-3225	24.000000 MHz	12 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C	≤ 40 Ω
X1E000021012516	3.2 x 2.5 x 0.6mm	TSX-3225	24.000000 MHz	16 pF	+/-10 ppm	+/-10 ppm	-20 to +75 °C	≤ 40 Ω
X1E000021012616	3.2 x 2.5 x 0.6mm	TSX-3225	24.000000 MHz	8 pF	+/-10 ppm	+/-20 ppm	-40 to +85 °C	≤ 40 Ω

高精密穿戴設備專用的SMD晶振X1E000021012116，愛普生晶振通過應用其多年來開發的高效、緊湊和精密技術來解決挑戰，尋求推進工業前沿并推動循環經濟。這些技術可以節省能源、實現更小的產品并提高準確性和精度，使愛普生能夠?yàn)榭沙掷m(xù)發展目標 (SDG) 做出貢獻，從而為所有人帶來更美好、更可持續的未來。
